Piercan溴化丁基手套8B1532-9.75A/丁基干箱手套/丁基手套箱手套
Piercan干箱手套/Piercan手套箱手套
手套特点:
PIERCAN丁基手套原产美国,本产品主要配套手套箱、操作箱、干燥箱、隔离体、注液机生产线等使用。
可配套进口手套箱,如:德国布劳恩手套箱、美国VAC手套箱、韩国高丽技研手套箱;各类国产手套箱。
常用于核电,防御,生物技术,半导体和制造业中的干箱操作,特别适合在有高度有毒化学品危害的条件下使用,
例如化学武器。该产品因具有最好的防水、氧气体渗透的功能,目前在电池生产、材料研发领域使用最为广泛。
PIERCAN 8B1532-9.75A Butyl Rubber glove is made in America,it is to use mainly by matching with
the glove box, operation box, dry box, isolator, production line of liquid fillingmachine and etc.
It can match with the imported glove box, such as: the glovebox of Braun from Germany,
VAC glove box from America and the KOREA KIYON glovebox and it can also match with all variety
of domestic glove boxes. It is oftenused in the dry box operation of various industries,
including the nuclearpower, defense, medicine, biotechnology, semiconductor and manufacturing,
especially for hazardous environment with highly toxic chemicals, such aschemical weapons.
It is most widely used in the battery production and materialresearch and development fields today
because of its best functionality of waterproofnessand oxygen penetration.
•聚合物类型(材质)Polymer Type
高性能丁基合成橡胶 High Performance Butyl
异丁烯聚异戊二烯 (Isobutylene Polyisoprene)
•特点 Characteristics
对气体和液体具有极佳的抗渗性
Excellent impermeability against gas and liquids
良好的耐化学性
Good chemical resistance
良好的耐臭氧性和抗紫外线性
Good resistance to Ozone and UV
防静电
Antistatic
•应用领域 Fields of Application
微电子/湿法化学 Microelectronics/Wet Chemistry
用于核电,防御,医药,生物技术,半导体和制造业中的干箱操作,
特别适合在有高度有毒化学品危害的条件下使用,例如化学武器。
•清洁方法 Cleaning Options
用 70%异丙醇擦拭 Wipe with 70% Isopropyl Alcoho
•储存条件 Storage Conditions
在华氏 35 至 85 度(摄氏 1.67 至 29.4 度)下原包装里储存
Store in original packaging between 35° F to 85° F (1.67° - 29.4° C)
•保质期 Shelf Life
以生产日期为起始 3 年 3 years from DOM
•废弃处理 Glove Disposal
不可回收 Non-recyclable
如未被污染,作为无毒废物分类
Classified non-toxic waste if not contaminated
•包装 Packaging
每副手套 3 等分折叠。 包装袋真空热封。 Tri-folded and packaged
by the pair. Bags are vacuum and heat sealed
材料代号 Material Designator | BHP溴化丁基橡胶 |
颜色 Color | 黑色 Black |
袖口直径 Port Sizes | 6”, 7”, 8”, 9”, 10”, 12”, 14” |
手型 Hand Styles | 不分左右或分左右 Ambidextrous or Left/Right |
手尺寸 Hand Sizes | 8.5, 9.75, 10.5 |
长度 Length | 30”, 32”, 34” (+/- 1”) |
厚度 Thickness | 15 mil (0.4mm) 标准 nominal Max: 24 mil (0.6mm) Max: 31.4 mil (0.8mm) |
卷边 Bead | 0.2”(+/-0.04”) (4mm-6mm) |
•机械属性 Mechanical Properties
Modulus 100% | 抗拉强度 Tensile Strength | 延长断裂 Elongation at Break | 水蒸气渗透性(气密性) Water Vapor Permeability | 表面电阻 Resistance |
<2.5 MPa | >13MPa | >400% | m27.10 .Pa--117 .s-1 | <1.10 Ohms8 |
•化学属性 (仅供参考)Chemical Properties (For guidance only)
化学物质 Chemicals | 性能 Performance |
压热器消毒Autoclave sterilization | +++ |
酒精 Alcohol | +++ |
酸、碱 Acids, bases | ++ |
强氧化剂 Strong oxidizers | ++ |
臭氧、紫外线、自由基、自然老化 | +++ |
酮类溶剂 Ketonic solvents | +++ |
氯化溶剂 Chlorinated solvents | - |
芳香烃溶剂和油类 | - |
脂肪族溶剂和油类 | - |
不建议 | +在某些情况下可以接受 |
++可接受 Acceptable | +++极佳 Excellent |
•温度限制 Temperature Limits
低温下限 | 高温上限 |
-22° F | 230° F |
-30° C | 110° C |
•型号选择:
订货号 | 袖口直径 | 厚度 | 长度 | 手掌大小 | 是否区分 左右手 | 手套颜色 |
PART NUMBER | PORT CUFF SIZE | THICKNESS | LENGTH | SIZE | GLOVE COLOR | |
6 BHP 1532-X | 6"/150mm | 0.4 mm | 32"/800mm | 8.5, 9.75, 10.5 | A or L/R | Black |
6 BHP 2432-X | 6"/150mm | 0.6 mm | 8.5, 9.75, 10.5 | A or L/R | ||
6 BHP 3032-X | 6"/150mm | 0.8 mm | 8.5, 9.75, 10.5 | A or L/R | ||
7 BHP 1532-X | 7"/175MM | 0.4 mm | 9.75, 10.5, U | A | ||
7 BHP 1532-X | 7"/175MM | 0.4 mm | 9.75, U | L/R | ||
7 BHP 2432-X | 7"/175mm | 0.6 mm | 9.75, 10.5, U | A | ||
7 BHP 2432-X | 7"/175mm | 0.6 mm | 9.75, U | L/R | ||
7 BHP 3032-X | 7"/175mm | 0.8 mm | 9.75, 10.5, U | A | ||
7 BHP 3032-X | 7"/175mm | 0.8 mm | 9.75, U | L/R | ||
8 BHP 1532-X | 8"/200mm | 0.4 mm | 8.5, 9.75, 10.5, U | A or L/R | ||
8 BHP 2432-X | 8"/200mm | 0.6 mm | 8.5, 9.75, 10.5, U | A or L/R | ||
8 BHP 3032-X | 8"/200mm | 0.8 mm | 8.5, 9.75, 10.5, U | A or L/R | ||
10 BHP 1532-X | 10"/250mm | 0.4 mm | 8.5, 9.75, 10.5 | A | ||
10 BHP 2432-X | 10"/250mm | 0.6 mm | 8.5, 9.75, 10.5 | A | ||
10 BHP 3032-X | 10"/250mm | 0.8 mm | 8.5, 9.75, 10.5 | A | ||
12 BHP 1532-X | 12"/305mm | 0.4 mm | 9.75 | A | ||
12 BHP 2432-X | 12"/305mm | 0.6 mm | 9.75 | A | ||
12 BHP 3032-X | 12"/305mm | 0.8 mm | 9.75 | A |

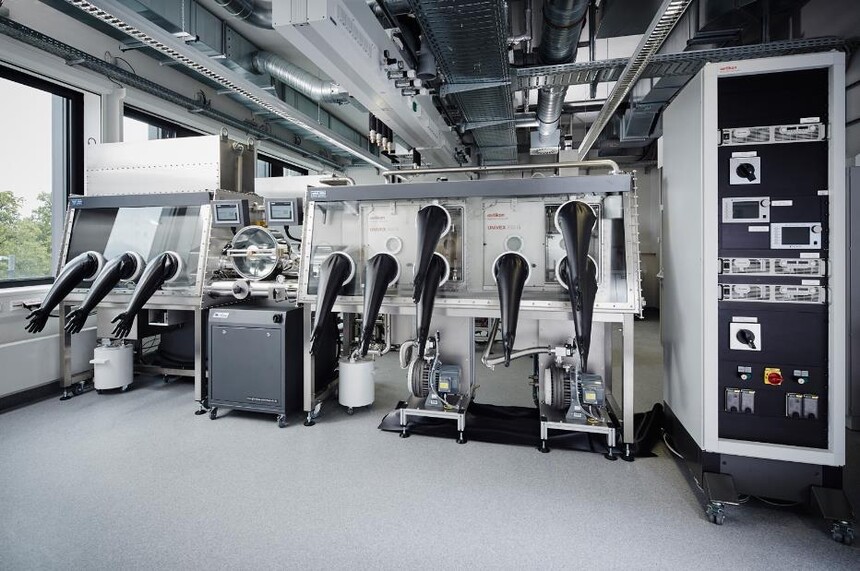

•使用场景图
